The DESMI NSLH pumps are designed for horizontal mount and meets the special marine and industrial market requirements.

DESMI Vertical (NSLV) and Horizontal (NSLH) End-Suction Centrifugal Pump

Play Video

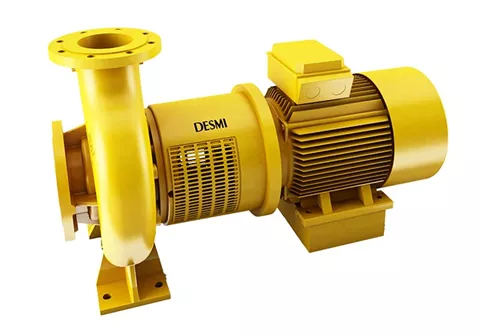

NSLH Centrifugal Pump

Specs

Nominal diameter
(DN) 80 to 800
Flow rate
Up to 1800 m³/h (7900 US gpm)
Head
Up to 220 m (720 ft)
Pressure
Up to 25 bar (363 psi)
Temperature
Up to 150°C (302°F)
Motor
Standard and EX motors
VFD
Direct or Wall-mounted
ATEX approved
Yes

Features

  • High efficiency
  • Low NPSH values
  • Easy installation/service
  • Specific materials
  • Compact design
  • Standardized to modular design
  • Outstanding hydraulic design performance
  • Spacer-coupling options for easy maintenance
  • Robust shaft design
  • High efficiency impeller with low NPSH values
  • Self-priming ability with a separate built-on priming pump
