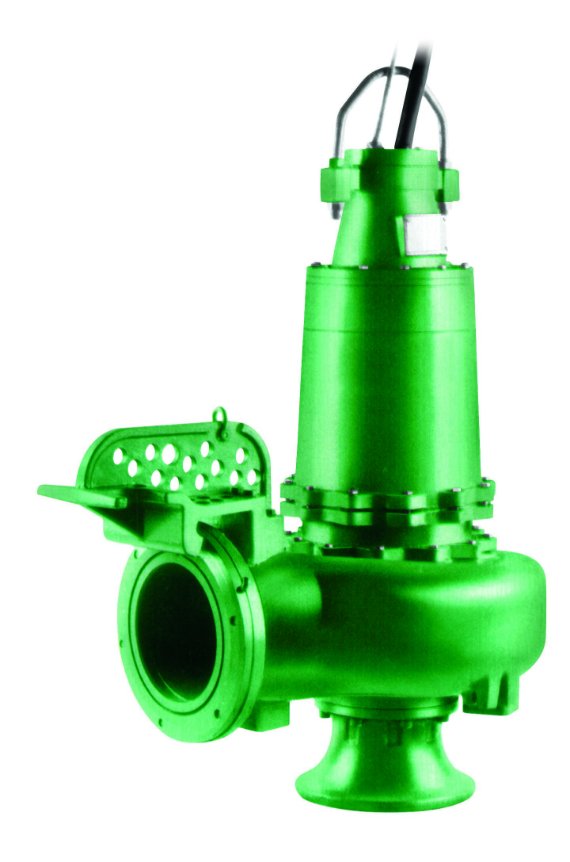

The Pentair Myers 12VL series pump is designed for use in high flow, medium head applications.
It’s available for use in in ordinary and hazardous locations.
12VL/12VLX 12" Solids Handling

Specs

CAPACITIES TO
7750 GPM (29331 LPM)
HEADS TO
72' (21.9 M)
SOLIDS HANDLING
5 1/4" (133.3 mm)
LIQUIDS HANDLING
Raw unscreened sewage, effluent, storm water
INTERMITTENT LIQUID TEMP.
Up To 140°F (60°C)
WINDING INSULATION TEMP CLASS H
356˚F (180˚C)
MOTORS
1150 RPM: 40, 50 hp, 3 ph 230, 460 & 575 volts, 60 Hz; 60, 75 hp, 3 ph 460 & 575 volts, 60 Hz 870 RPM: 15, 20, 25 hp, 3 ph 208, 230, 460 & 575 volts, 60 Hz; 30 hp, 3 ph, 230, 460 & 575 volts, 60 Hz
STD. THIRD PARTY APPROVALS
CSA
OPTIONAL APPROVALS
FM, Class 1, Groups C & D
ACCEPTABLE PH RANGE
6-9
SPECIFIC GRAVITY
.9 – 1.1
VISCOSITY
28 – 35 SSU
HORIZONTAL DISCHARGE
12 in. 125 lb. ANSI (304.8 mm)
MOTOR HOUSING, SEAL HOUSING, CORD CAP AND VOLUTE CASE
Cast iron, Class 30, ASTM A48
ENCLOSED 2-VANE IMPELLER
Ductile iron, Class 65, ASTM A536
POWER CORD
SOOW
CONTROL CORD
W
MECHANICAL SEAL OPTIONAL
Double tandem carbon and ceramic lower tungsten carbide
PUMP MOTOR SHAFT
416 SST
FASTENERS
300 series SST
CASE WEAR RING
Bronze

Features

  • Flows up to 7750 gpm
  • Heads up to 72'
  • Speed 870 & 1150 RPM
  • 12" discharge
  • 5-1/4" solids capacity
