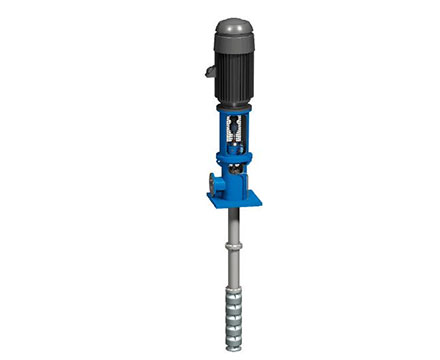

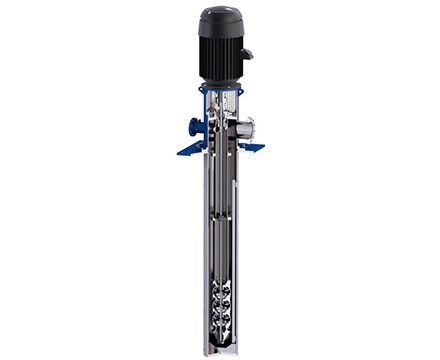

Floway® VHP API 610 current edition compliant vertical close coupled, single or multistage turbine pump, with fabricated discharge head, top mounted motor and wet pit (VS1) or closed suction (VS6).
Higher pressures with premium efficiencies and low operating costs. Available low NPSH impeller allows for a reduced barrel length. Pump bowl assembly is characterized as low energy per stage resulting in a broad flow range with excellent hydraulic stability. “O” ring joints throughout pump eliminates leaking for higher pressure applications. Throttle bearing provides shaft support and allows for higher operating pressures.


  • API 610 current edition compliantAPI 610 material combinations,
  • Thrust bearing assembly available,
  • Fabricated discharge head,
  • Above/below ground suction,
  • Flanged column,
  • Enclosed/open impellers,
  • Multiple coating options,
  • Multiple NDE/Testing options,
  • Bowl/impeller wear rings,
  • Thrust balanced impeller,
  • Hard chrome bearing journals,
  • Product lube/oil lube shafting,
  • Mechanical shaft sealing,
  • VSS/VHS motor shafting,
  • Keyed impeller mounting
