Fairbanks Nijhuis VTSH vertical turbine solids-handling pumps have proven experience in the pumping of solids, slurries and sewage.
These pumps are specifically designed to pass solids, sludge, trash and long, stringy materials.
Our website uses cookies. By continuing to browse our site you are agreeing to our Cookie Policy.

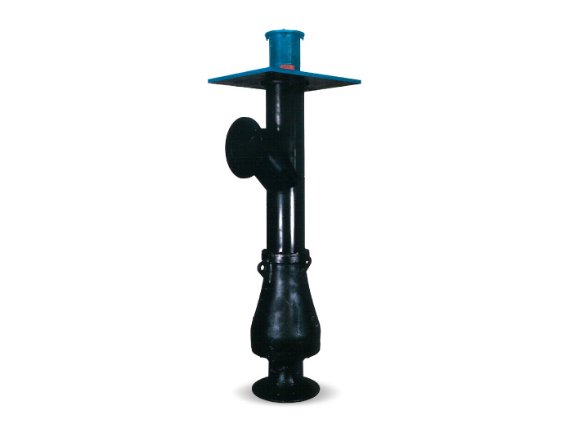

VTSH & VTSH-SCR Series Vertical Turbine Solids Handling Pumps
VTSH & VTSH-SCR Series Vertical Turbine Solids Handling Pumps
Specs
DISCHARGE SIZES VTSH
8" – 12" (203 –305 mm)
DISCHARGE SIZES VTSH-SCR
Up to 48” (Up to 1220 mm)
CAPACITIES VTSH
250 – 2950 GPM (57 – 670 m3 /h)
CAPACITIES VTSH-SCR
5,000-80,000 GPM (1,135-18,160 m3 /h)
HEAD VTSH
6’ to 50’ (1.8 to 15.24 m)
HEAD VTSH-SCR
10’ to 110’ (3.05 to 33.5 m)
SOLIDS HANDLING CAPABILITY VTSH
3" to 4.5" (76 to 114mm)
SOLIDS HANDLING CAPABILITY VTSH-SCR
3" to 8" (76 to 203mm)
Resources
Features
- Eliminates the need for additional dry-sump, suction piping, dehumidification and sump pumps.
- Reduces initial constructions costs. Save 40-70% compared to conventional wet-pit/dry-pit designs.
- Ideally suited for the new trench-type self-cleaning wet well design.
- Non-clogging. Highly efficient.
- Design allows entire drive system and controls to be located above the flood plane.
- Constructed of cast iron bowls and impellers and a stainless steel pump shaft.
