PEP ll Series Metering Pumps

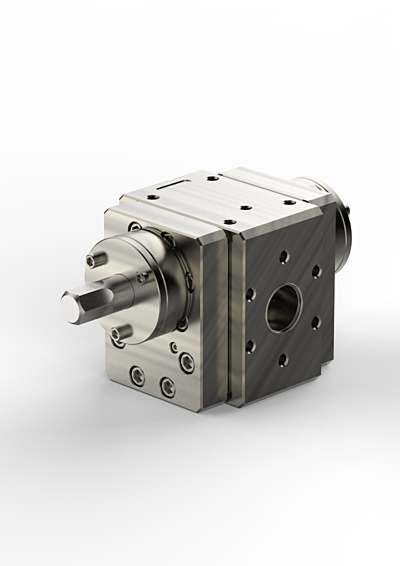

ZENITH PEP 2 SERIES PUMP

Specs

Available Capacities
0.16 – 750 cc / rev
Flow Rate
0.2 – 7,000 lbs/hr
Max Operating Temperature
950F
Max Discharge Pressure
10,000 psi

Features

  • Optimizing extrusion processes with reduced heat and required torque and the elimination of surging.
  • The Zenith PEP II series are common in extrusion processes. The Zenith gear pump optimizes the extrusion process by allowing the screw to melt and homogenize the polymer. As the pump generates the needed pressure, it relieves the extruder of work; therefore, reducing heat from the shear, lowering the torque required and eliminating surging.
  • The Pep II pumps are also offered with the Rheoseal. The Rheoseal design includes reverse flights inside the seal chamber, as well as a water channel to cool the polymer and a backup lip seal. The rotating shafts create a mechanical action on the material, which pumps the polymer back into the pump cavity and seals the shaft from the leakage.
