Built for easy maintenance and long life, Gabbioneta DSIL pumps minimize axial and radial load while meeting tough NPSH requirements.

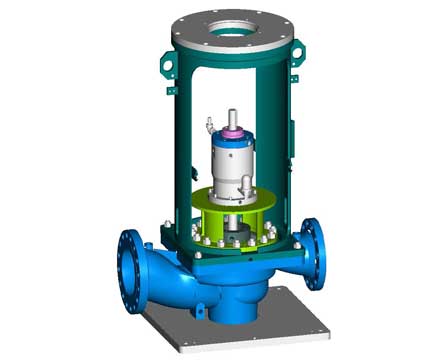

The DSIL range Gabbioneta Pumps TM are heavy duty process vertical in-line overhung pumps, with double suction impeller designed in a back pull-out cofiguration for easy maintenance activities without motor removal.

Suction and discharge noozzles are integrally cast with the casing and double volutes minimise radial loads, for extent pump life.

Double suction, axially balanced, closed type impeller, with front and rear wear rings, allow to meet very low NPSHr.

As option, pumps can be equipped with heavy duty bearing housing, anti-reverse rotation device, steam jackets and casing insulations.

DSIL OH3 type API 610


Up to 6000 m3/h (26400 Gpm)
Up to 300 m (1000 feet)
Operating temperature
From -150 ºC (-240 ºF) to 400 ºC (750 ºF)
Standard design pressure
40 bar (580 Psig), special executions up to 100 barg (1400 Psig)
Rotational speed
Up to 3600 RPM


  • API 610 last Edition
  • All API610 class materials & special materials upon request
