API 610 current edition compliant vertical close coupled, single or multistage turbine pump, with fabricated discharge head, top mounted motor and wet pit (VS1) or closed suction (VS6).

Floway® VHP API 610 current edition compliant vertical close coupled, single or multistage turbine pump, with fabricated discharge head, top mounted motor and wet pit (VS1) or closed suction (VS6). Higher pressures with premium efficiencies and low operating costs. Available low NPSH impeller allows for a reduced barrel length. Pump bowl assembly is characterized as low energy per stage resulting in a broad flow range with excellent hydraulic stability. “O” ring joints throughout pump eliminates leaking for higher pressure applications. Throttle bearing provides shaft support and allows for higher operating pressures.

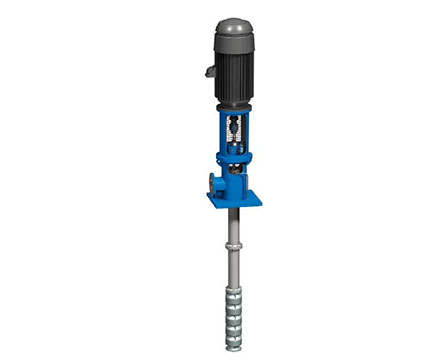

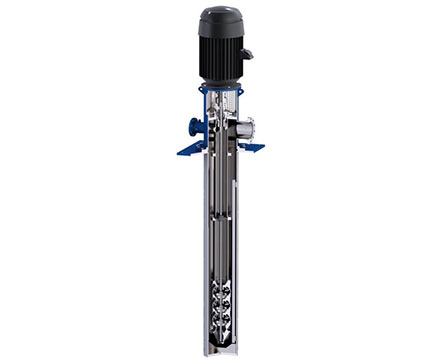

VHP API 610 Vertical Turbine Pump

Specs

Design standard
API 610 11th Ed
Size range/dimensions
Sizes from 4″” to 37″”
Pressure class/power
Pressures to 3000 psi (200 bar)
Temperature range
-130ºF (-90ºC) to 450ºF (220ºC)
Capacity
35,000 GPM (8000 m3/h)
Materials
S4, S5, S6 A8, D1, D2

Features

  • API 610 current edition compliant API 610 material combinations
  • Thrust bearing assembly available
  • Fabricated discharge head
  • Above/below ground suction
  • Flanged column
  • Enclosed/open impellers
  • Multiple coating options
  • Multiple NDE/Testing options
  • Bowl/impeller wear rings
  • Thrust balanced impeller
  • Hard chrome bearing journals
  • Product lube/oil lube shafting
  • Mechanical shaft sealing
  • VSS/VHS motor shafting
  • Keyed impeller mounting
