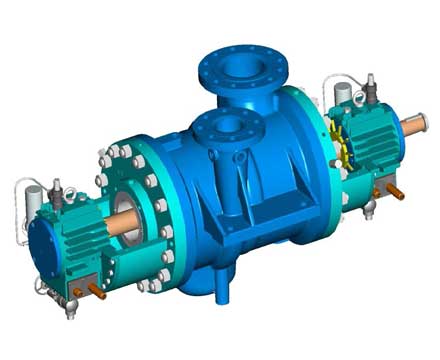

The DH-DDH range Gabbioneta Pumps TM are heavy duty horizontal, between bearings two stages pumps with radial split casing.

Two single suction back to back impellers for DH or a double suction first stage impeller, plus a second stage with bilancing drum for DDH, assure adequate axial thrust balance and allow to accept any type of balanced mechanical seals, in accordance with API 682 Stdandard.


  • Capacity up to 350 m3/h (1500 Gpm) DH 1800 m3/h (8000 Gpm) DDH
  • Head up to 760 m (2500 feet) DH
  • Operating temperature from -30 ºC (-20 ºF) to 455 ºC (851 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 150 barg (2200 Psig)
  • Rotational speed up to 3600 RPM
