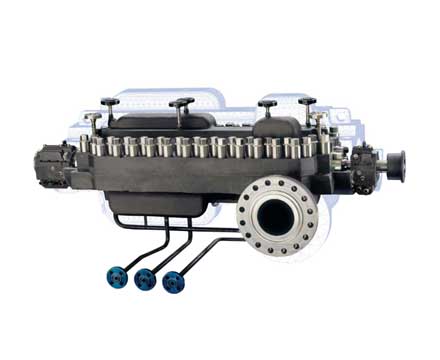

The AHP and AHP-DS range Gabbioneta Pumps TM are heavy duty process multistage pumps, horizontal, between bearings, volute type pumps, with axial split casing that allow easy internal inspectability and maintenance and single or double entry 1st stage impeller.

Opposed impellers configuration allow to minimise axial thrust.


  • Capacity up to 2000 m3/h (8800 Gpm)
  • Head up to 2500 m (8200 feet)
  • Operating temperature from -30 ºC (-20 ºF) to 200 ºC (400 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 210 barg (3000 Psig)
  • Rotational speed up to 3600 RPM
