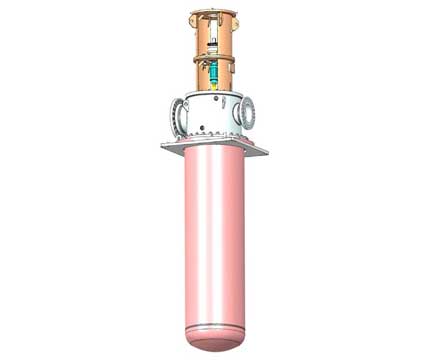

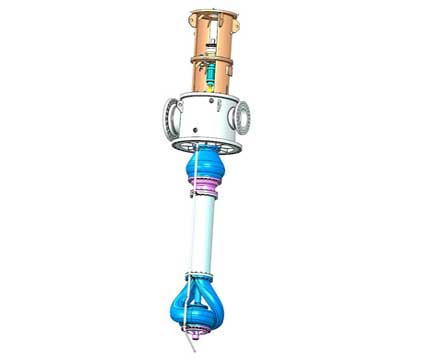

The VD and VLD Gabbioneta Pumps TM are vertical multistage, volute type, heavy duty prcess pumps, available in double- casing or wet pit configuration.

Double suction 1st stage impeller permits to meet low NPSH requirements, while the closed type impeller with front and rear wear rings and balancing holes minimizes the axial thrust.

Labyrinths and deflectors at both bearing housing covers maximize protection against dirt and pump shaft, in one or two pieces, is fully machined to respect the more restrictive run-out API limits.

Additional rigid coupling, to facilitate mechanical seal maintenance activities, and axial thrust tilting pad bearings for ultra high thrust operating conditions can be provided.


  • Capacity up to 4500 m3/h (19800 Gpm)
  • Head up to 500 m (1640 feet)
  • Operating temperature from -150 ºC (-240 ºF) to 400 ºC (750 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 49 barg (710 Psig)
  • Rotational speed up to 1800 RPM
