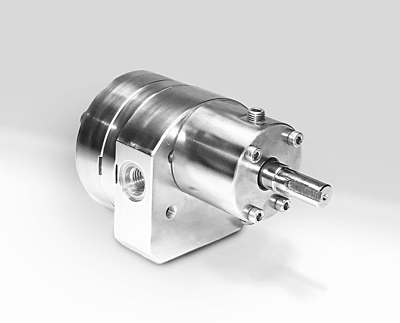

H-9000 Series, High-Temperature and Abrasive Fluids.


Typical Service
Abrasive / High Temperature
Tool Steel
Outlet Pressure
Up to 2500 psi (175 Bar)
Max Operating Temperature
Flow Rate
Up to 27,000 cc / min
Fluid Properties Lubricity
Abrasive / Good / Excellent
Compatibility Viscosity
Non-corrosive 1 cps or greater


  • Metering additives with accurate, repeatable pulse-free flow in a compact design.
  • The 9000 series metering pumps are used with a range of fluids – from general to abrasive to poor lubricating. You will find the 9000 series metering additives, colorants or chemicals in food and beverage, chemical, fiber, pharmaceutical and paint facilities around the world. They offer engineers and operators accurate, repeatable pulse free flow in a compact design.
  • The B-9000 and C-9000 pumps are available with magnetic drive (mag-drive) sealing option. Mag-drives can eliminate shaft leakage of fluids, increasing plant safety and reduces VOC emissions and seal failures. The magnetic coupling feature also reduces downtime due to excessive mechanical seal failures and eliminates the need for buffer fluids.
  • The 9000 series is also offered in a submersible and magnetic drive design. The submersible model does not have a shaft seal and the gear plate is notched. The magnetic drive product series uses magnetic sealing system to eliminate potential for leaks.
  • Each model can be further customized to meet your operating conditions.
