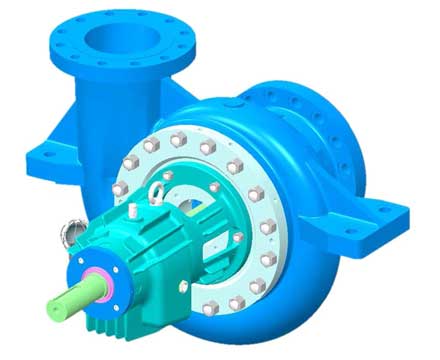

The R Range Gabbioneta PumpsTM are overhung horizontal radially split, centerline supported heavy duty process pumps, designed in a back pull-out configuration for easy maintenance and centerline feet mounting for high temperature stability.

The coverage includes more than 100 different hydraulics, for optimum efficiency over a wide operating range.
Shaft flexibility index is fully in compliance with API 610 Annex K and twin volute configuration minimises radial loads.

Features

  • Capacity up to 2500 m3/h (11000 Gpm)
  • Head up to 380 m (1200 feet)
  • Operating temperature fom -100ºC (-150 ºF) to 450ºC (850 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 210 barg (3000 Psig)
  • Rotational speed up to 3600 RPM
