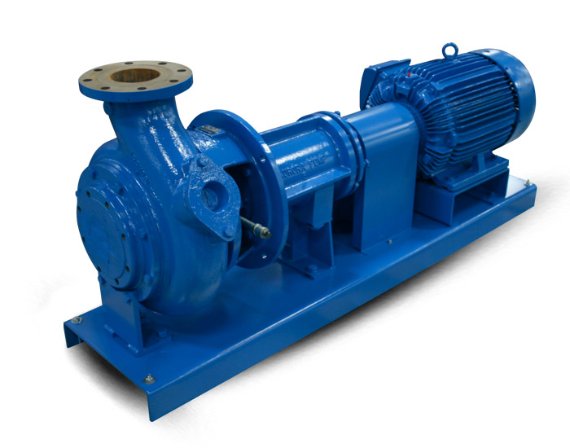

611 Horizontal One Stage Solids Handling Pump
611 Horizontal One Stage Solids Handling Pump

Specs

CAPACITIES
20,000 G.P.M. (4542 M3/HR)
HEADS
250 Feet (76 Meters)
TEMPERATURE
250°F (121°C)
DISCHARGE SIZES
6" (15.2 cm) thru 20" (50.8 cm)

Features

  • Solids-Handling, Sewage Treatment Pump
  • Horizontally Baseplate Mounted with a Driver Flexibility Coupled to the Pump
  • Design Recommended where Floor Space is Available and Flooding is Not Possible
  • Supported at Both Pump and Coupling Ends
  • Provides Centerline Discharge Support and Protection Against Pipe Strain
  • Casing Support when Drive End is Removed for Servicing
  • Real Support Greatly Simplifies Shaft Coupling Alignment
