Gabbioneta AXD/AXDD pumps offer easy maintenance and proven reliability for the tough conditions found in refineries and petrochemical plants.

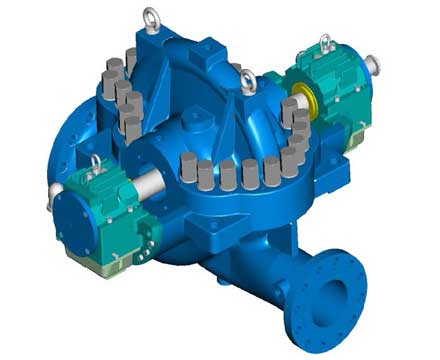

The AXD-AXDD range Gabbioneta Pumps TM are heavy duty horizontal, between bearings axial split casing pumps with single or double suction first stage impeller and, for AXDD, a second single suction impeller, with suction and discharge nozzles, integrally cast with the casing, arranged in in-line configuration.

Double suction, closed impeller, solid hub assure axial balance under varied operating conditions.
Three bearing housings arrangements are available: ball/ball, sleeve/ball, sleeve/tilting pad.
”CARB” or hydrodynamic line bearing for high temperature application can be provided.

AXD AXDD BB1 type API 610


Up to 12000 m3/h (52800 Gpm) AXD 1800 m3/h (8,000 Gpm) AXDD
Up to 380 m (1200 feet) 760 m (2500 feet)
Operating temperature
From -30 ºC (-20 ºF) to 200 ºC (400 ºF)
Standard design pressure
40 bar (580 Psig), special executions up to 60 barg (900 Psig)
Rotational speed
Up to 3600 RPM


  • API 610 last Edition
  • All API610 class materials & special materials upon request
