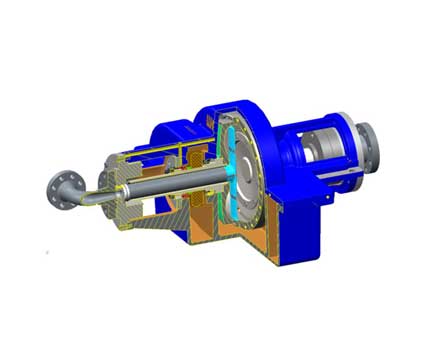

Roto-Jet RO-FT API 610 pump works specifically for demanding low-flow high-head services fully meeting the requirements of API 610.

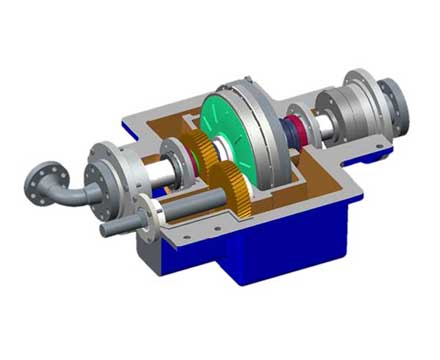

The RO-FT between-bearing configuration provides a reliable, robust and easy to maintain pump for the midstream and downstream refining, petrochemical and chemical processing industries. Designed specifically for demanding low-flow high-head services, this pump fully meets the requirements of API 610. The operating characteristics of the Roto-Jet® RO-FT API 610 pump are simple and similar to a conventional centrifugal pump. Energy is added to the fluid via the rotor, and the stationary Pitot tube converts the fluid velocity energy into static pressure. In addition, the Roto-Jet® RO-FT API 610 pump has been specifically designed to achieve a broad operating range without generating damaging hydraulic forces during a process upset. These attributes result in improved mechanical seal and bearing life to maximise Mean Time Between Failure, and decrease operational and maintenance costs, which make the Roto-Jet the most cost effective choice for low-flow high head process applications.

RO-FT API 610

Specs

Temperature range
Up to 550ºF (290ºC)
Capacity - Head
to 5000 ft. (500 m) Flow: to 450 gpm (102 m³/hr)
Materials - Rotor
Carbon Steel (A216 WCB), 12% CR (A487 CA6NM), 316 AUS (A351 CF3M) Duplex (A890 CD4MCu)
Flanges
Carbon Steel (A216 WCB), 12% CR (A487 CA6NM), 316 AUS (A351 CF3M) Duplex (A890 CD4MCu)
Shaft Assembly
Carbon Steel (A216 WCB), 12% CR (A487 CA6NM), 316 AUS (A351 CF3M) Duplex (A890 CD4MCu)
Input Shaft
4140 Carbon Steel (A193)
Pitot Tube
17-4-PH* Stainless Steel (A564) or Inconel* 718
Gearbox
Carbon Steel (A216 WCB)

Features

  • API 610 11th Edition compliant
  • Standard API 682 cartridge seals
  • No external lube system required
  • No wear rings or close running clearances
  • Low NPSH3 without the use of an inducer
  • Robust design is insensitive to process upsets
  • Pulsation free flow over the entire head-flow curve
  • Integral gearbox is isolated from process seal leakage
  • Reduced life cycle cost by optimising hydraulic efficiency
  • Process seals exposed only to suction pressure for maximum seal life
  • Between bearings arrangement minimises shaft deflection at the seals
  • Bearing L10 life exceeds API 610 requirements using rolling element bearings
  • Patented rotor eliminates radial and axial thrust as a function of flow rate and suction pressure
  • High heads achieved in a single stage at low operating speeds compared to other low-flow, high-head pumps
