Easy to assemble, Gabbioneta BSD pumps minimise the number of rotating parts, saving space and lowering installation and operating costs.

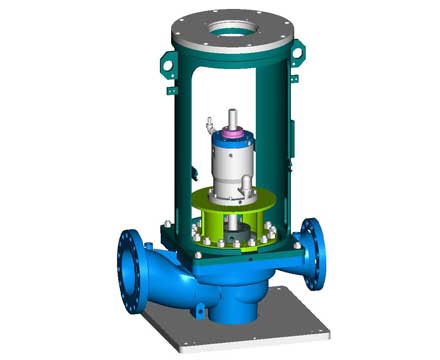

The BSD range Gabbioneta Pumps TM are heavy duty process vertical in-line overhung pumps with single suction impeller, designed in a back pull-out configuration for easy maintenance activities without motor removal.
Computer desinged and fully machinned diffusers reduces virtually all hydraulic radial forces and limits shaft deflection at any flow.

As option, pumps can be equipped with grease lubricated bearing, pure or purge oil mist lubrication, anti-reverse rotation device, steam jackets and casing insulations.

BSD OH3 type API 610


Up to 500 m3/h (26400 Gpm)
Up to 300 m (1000 feet)
Operating temperature
From -150 ºC (-240 ºF) to 400 ºC (750 ºF)
Standard design pressure
40 bar (580 Psig), special executions up to 100 barg (1400 Psig)
Rotational speed
Up to 3600 RPM


  • API 610 last Edition
  • All API610 class materials & special materials upon request
