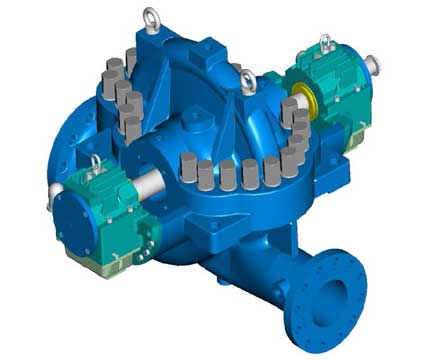

The AXD-AXDD range Gabbioneta Pumps TM are heavy duty horizontal, between bearings axial split casing pumps with single or double suction first stage impeller and, for AXDD, a second single suction impeller, with suction and discharge nozzles, integrally cast with the casing, arranged in in-line configuration.


  • Capacity up to 12000 m3/h (52800 Gpm) AXD 1800 m3/h (8,000 Gpm) AXDD
  • Head up to 380 m (1200 feet) 760 m (2500 feet)
  • Operating temperature from -30 ºC (-20 ºF) to 200 ºC (400 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 60 barg (900 Psig)
  • Rotational speed up to 3600 RPM
