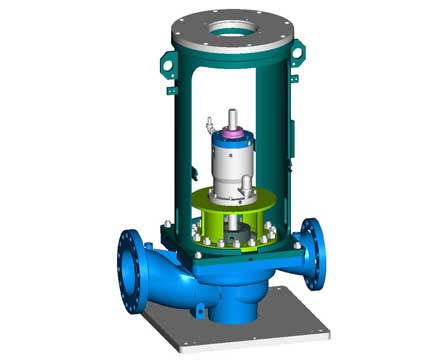

The BSD range Gabbioneta Pumps TM are heavy duty process vertical in-line overhung pumps with single suction impeller, designed in a back pull-out configuration for easy maintenance activities without motor removal.

Computer desinged and fully machinned diffusers reduces virtually all hydraulic radial forces and limits shaft deflection at any flow.

As option, pumps can be equipped with grease lubricated bearing, pure or purge oil mist lubrication, anti-reverse rotation device, steam jackets and casing insulations.


  • Capacity up to 500 m3/h (26400 Gpm)
  • Head up to 300 m (1000 feet)
  • Operating temperature from -150 ºC (-240 ºF) to 400 ºC (750 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 100 barg (1400 Psig)
  • Rotational speed up to 3600 RPM
