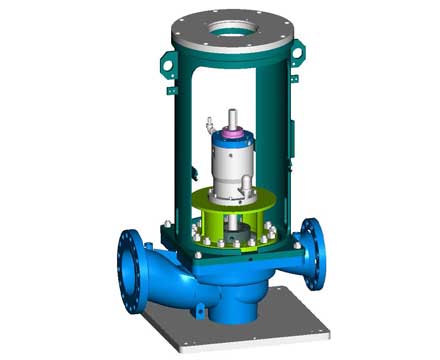

The DSIL range Gabbioneta Pumps TM are heavy duty process vertical in-line overhung pumps, with double suction impeller designed in a back pull-out cofiguration for easy maintenance activities without motor removal.

Suction and discharge noozzles are integrally cast with the casing and double volutes minimise radial loads, for extent pump life.

Double suction, axially balanced, closed type impeller, with front and rear wear rings, allow to meet very low NPSHr.

As option, pumps can be equipped with heavy duty bearing housing, anti-reverse rotation device, steam jackets and casing insulations.


  • Capacity up to 6000 m3/h (26400 Gpm)
  • Head up to 300 m (1000 feet)
  • Operating temperature fom -150 ºC (-240 ºF) to 400 ºC (750 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 100 barg (1400 Psig)
  • Rotational speed up to 3600 RPM
