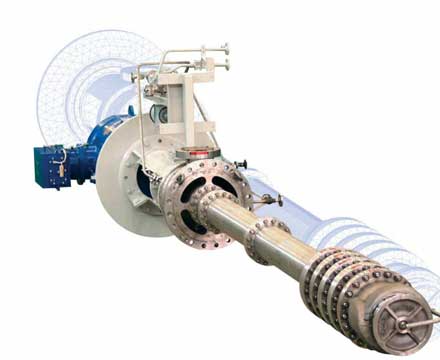

The VBN and VBN-DS Gabbioneta Pumps TM are vertical multistage, heavy duty process pumps, available in double casing or wet pit configuration.

A wide range of sizes, number of stages and large eye suction or double suction 1st stage impeller, that allows to meet low NPSH requirements, complete the variery of the offered products.

Features

  • Capacity up to 1800 m3/h (8000 Gpm)
  • Head up to 2000 m (6500 feet)
  • Operating temperature from -150 ºC (-240 ºF) to 400 ºC (750 ºF)
  • Standard design pressure 40 bar (580 Psig), special executions up to 210 barg (3000 Psig)
  • Rotational speed up to 3600 RPM
