XCEL-200N to 600N Series mixers are engineered and manufactured specifically for the demanding operating parameters associated with difficult mixing applications.



XCEL-200N to 600N mixers feature custom gearboxes with helical/spiral bevel gear combinations. Large diameter output shafts accommodate the high bending moments and loads associated with these types of applications.

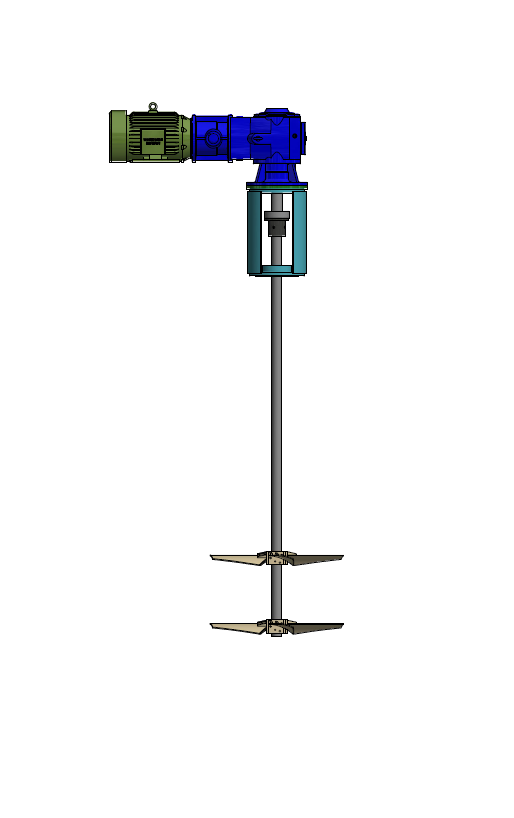

Agitators XCEL-200N to 600N Series

Specs

HP Rating
Up to 1000 HP
Speed Range
1 to 350 rpm
Motor
NEMA foot or C-face, TEFC or XP
Gear Drive
Helical and bevel gear configurations
Pumping Rates
Up to 500,000 gpm
Impellor
Hydrofoil for highest efficiency
Shaft
UP to 50ft. long without a steady bearing
Mounting
Baseplate or flange mount
