Magnetically coupled internal gear pump for ultimate protection against leakage

ED is for Environmental Duty. As only minimal maintenance is necessary, ED pumps will be a very economical solution compared with traditionally sealed pumps, especially where the application requires the use of double mechanical shaft seals.

Often these applications are very arduous resulting in the seals and support system requiring regular attention and/or replacement. Thus, the life cycle costs for ED pumps are generally much lower than for pumps using two seals.

Rotan ED - internal gear pump

Play Video

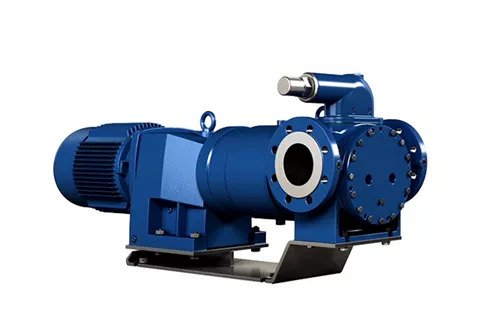

Rotan ED sealless, magnetically driven internal gear pump


Capacity Range
Up to 90 m3/h / 396 gpm
Up to 1750 rpm
Differential Pressure
Up to 16 bar / 232 psi
Suction Lift
Up to 0,5 bar / 7.25 psi vacuum while priming & Up to 0,8 bar / 11.6 psi vacuum while pumping
Viscosity Range
Up to 10,000 cSt
Up to 250°C / 482° F


  • Reversible direction of flow with double acting relief valve option available
  • Coupled direct to NEMA or IEC motor for speed up to 1750 rpm
  • Directed coupled gearbox with NEMA or IEC electric motor eliminating alignment issues
  • Adjustable rotor end clearance without opening the system to the atmosphere
  • Torque capabilities in excessive of 800 ft-lb
  • Flow rates max. 90 m3/h with differential pressure up to max. 16 bar.
  • Iron, Steel and Stainless Steel construction
  • Tungsten Carbide abrasive wear materials are available for abrasive duty applications
